KMOC3043S - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

Product Overview

COSMO Electronics

Datasheet Details

Part number	KMOC3043S
Manufacturer	COSMO Electronics
File Size	257.94 KB
Description	5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
Datasheet	KMOC3043S Datasheet
Note	This datasheet PDF includes multiple part numbers: KMOC3043S, KMOC3043. Please refer to the document for exact specifications by model.

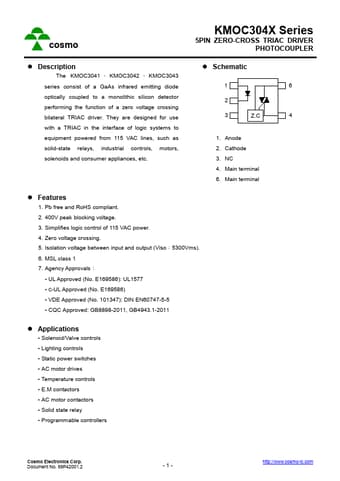

Additional preview pages of the KMOC3043S datasheet.

Product details

Description

The KMOC3041 、 KMOC3042 、 KMOC3043 series consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. Schematic 1

Features

Pb free and RoHS compliant. 2. 400V peak blocking voltage. 3. Simplifies logic control of 115 VAC power. 4. Zero voltage crossing. 5. Isolation voltage between input and output (Viso：5300Vms). 6. MSL class 1 7. Agency Approvals：.
UL Approved (No. E169586): UL1577.
C-UL Approved (No. E169586).
VDE Approved (No. 101347): DIN EN60747-5-5.
CQC Approved: GB8898-2011, GB49.
