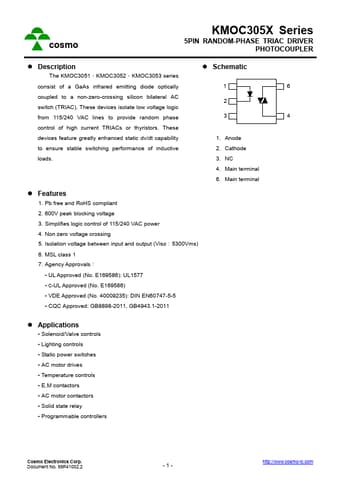

KMOC3053 - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

The KMOC3051、KMOC3052、KMOC3053 series consist of a GaAs infrared emitting diode optically coupled to a non-zero-crossing silicon bilateral AC switch (TRIAC).

These devices isolate low voltage logic from 115/240 VAC lines to provide random phase control of high current TRIACs or thyristors.

These dev

KMOC3053 Features

* 1. Pb free and RoHS compliant 2. 600V peak blocking voltage 3. Simplifies logic control of 115/240 VAC power 4. Non zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals：

* UL Approved (No. E169586): UL1577

* C-UL Approv
