KMOC3053H, KMOC3053 Datasheet - COSMO Electronics

KMOC3053H 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

The KMOC3051、KMOC3052、KMOC3053 series consist of a GaAs infrared emitting diode optically coupled to a non-zero-crossing silicon bilateral AC switch (TRIAC). These devices isolate low voltage logic from 115/240 VAC lines to provide random phase control of high current TRIACs or thyristors. These dev.

KMOC3053H Features

* 1. Pb free and RoHS compliant 2. 600V peak blocking voltage 3. Simplifies logic control of 115/240 VAC power 4. Non zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals：

* UL Approved (No. E169586): UL1577

* C-UL Approv

KMOC3053_COSMOElectronics.pdf

This datasheet PDF includes multiple part numbers: KMOC3053H, KMOC3053. Please refer to the document for exact specifications by model.

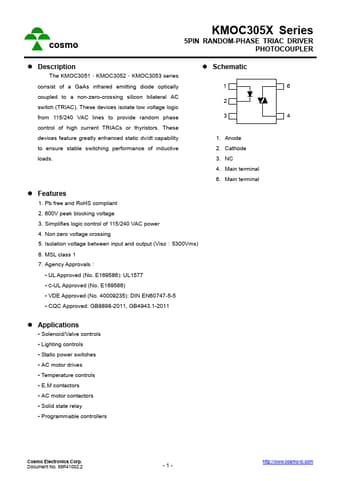

KMOC3053H Datasheet Preview Page 2 KMOC3053H Datasheet Preview Page 3

Datasheet Details

Part number:

KMOC3053H, KMOC3053

Manufacturer:

COSMO Electronics

File Size:

253.70 KB

Description:

5pin random-phase triac driver photocoupler.

Note:

This datasheet PDF includes multiple part numbers: KMOC3053H, KMOC3053.
Please refer to the document for exact specifications by model.
