KMOC3083L

5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

KMOC3083L Features

* 1. Pb free and RoHS compliant 2. 800V peak blocking voltage 3. Simplifies logic control of 240 VAC power 4. Zero voltage crossing 5. Isolation voltage between input and output (Viso:5300Vms) 6. MSL class 1 7. Agency Approvals:

* UL Approved (No. E169586): UL1577

* C-UL Approved

KMOC3083L General Description

The KMOC3081 、 KMOC3082 、 KMOC3083
* Schematic series consist of a GaAs infrared emitting diode 1 optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use 2 3 Z.C with a TRIAC in the interface of.

KMOC3083L Datasheet (251.93 KB)

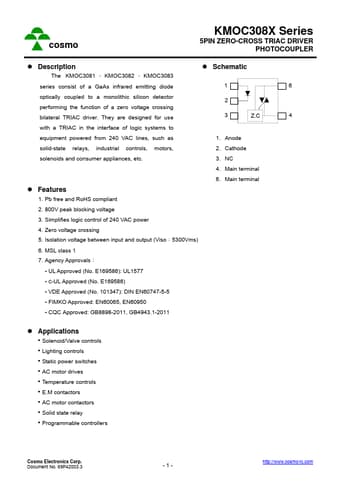

Preview of KMOC3083L PDF

Datasheet Details

Part number:

KMOC3083L

Manufacturer:

COSMO Electronics

File Size:

251.93 KB

Description:

5pin zero-cross triac driver photocoupler.
