KMOC3083S, KMOC3083 Datasheet - COSMO Electronics

KMOC3083S 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

The KMOC3081 、 KMOC3082 、 KMOC3083 * Schematic series consist of a GaAs infrared emitting diode 1 optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use 2 3 Z.C with a TRIAC in the interface of.

KMOC3083S Features

* 1. Pb free and RoHS compliant 2. 800V peak blocking voltage 3. Simplifies logic control of 240 VAC power 4. Zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals：

* UL Approved (No. E169586): UL1577

* C-UL Approved

KMOC3083_COSMOElectronics.pdf

This datasheet PDF includes multiple part numbers: KMOC3083S, KMOC3083. Please refer to the document for exact specifications by model.

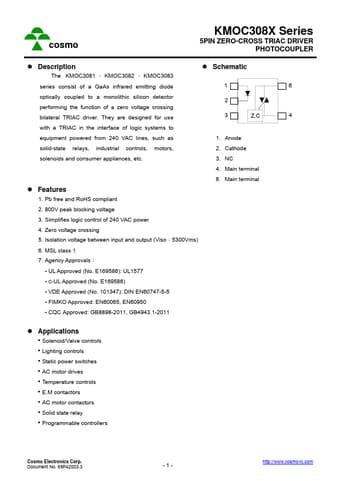

KMOC3083S Datasheet Preview Page 2 KMOC3083S Datasheet Preview Page 3

Datasheet Details

Part number:

KMOC3083S, KMOC3083

Manufacturer:

COSMO Electronics

File Size:

251.93 KB

Description:

5pin zero-cross triac driver photocoupler.

Note:

This datasheet PDF includes multiple part numbers: KMOC3083S, KMOC3083.
Please refer to the document for exact specifications by model.
