CRG50T60AH3HD Silicon FS Trench IGBT

CRG50T60AH3HD Description

Silicon FS Trench IGBT CRG50T60AH3HD General .
Using HUAJING's proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

CRG50T60AH3HD Features

* FS Trench Technology, Positive temperature coefficient

CRG50T60AH3HD Applications

* Welding
* Solar Inverter
* UPS VCES 650 V IC 50 A Ptot （TC=25℃） 40 W VCE(sat) 1.8 V TO-3PH GCE Package Parameters Type CRG50T60AH3HD Marking G50T60AH3HD Package TO-3PH Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO. , LTD. Page 1 of 9 2022V01 CRG50T60AH3H

📥 Download Datasheet

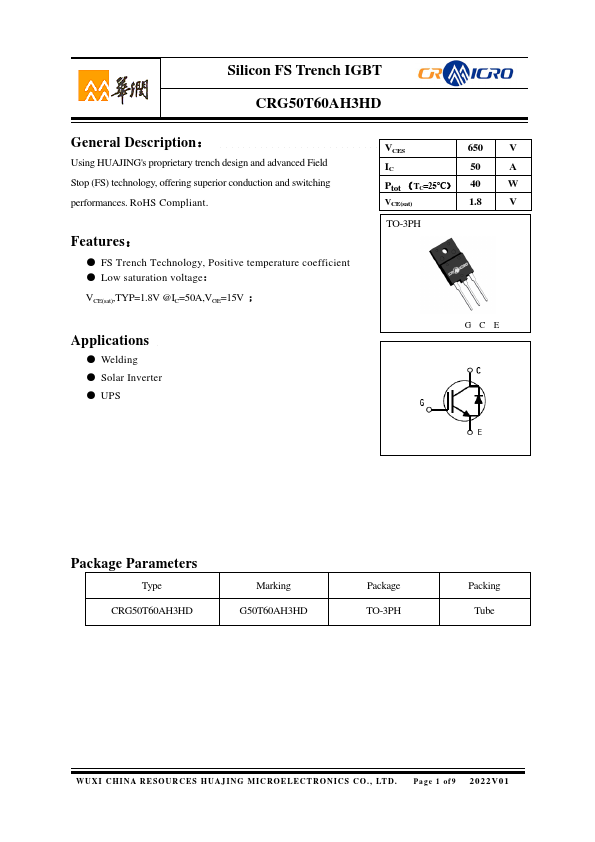

Preview of CRG50T60AH3HD PDF

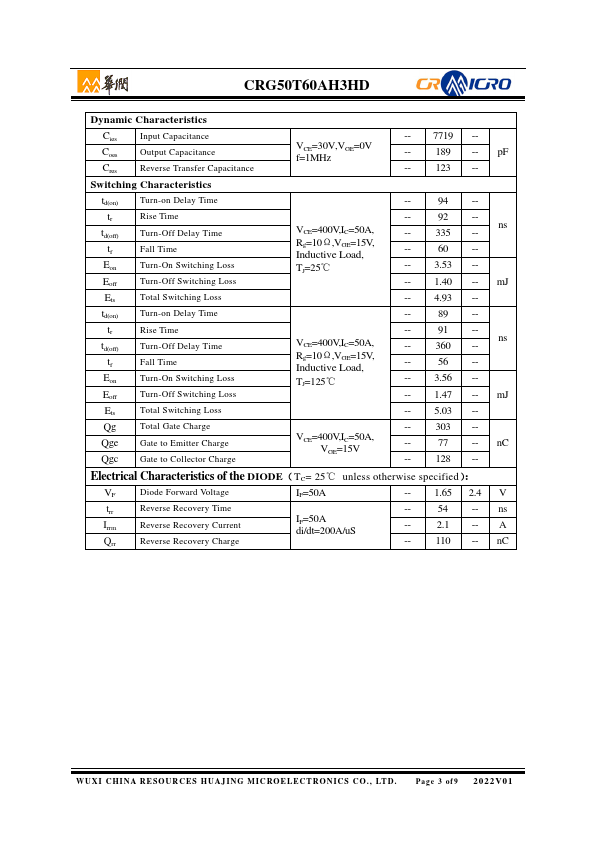

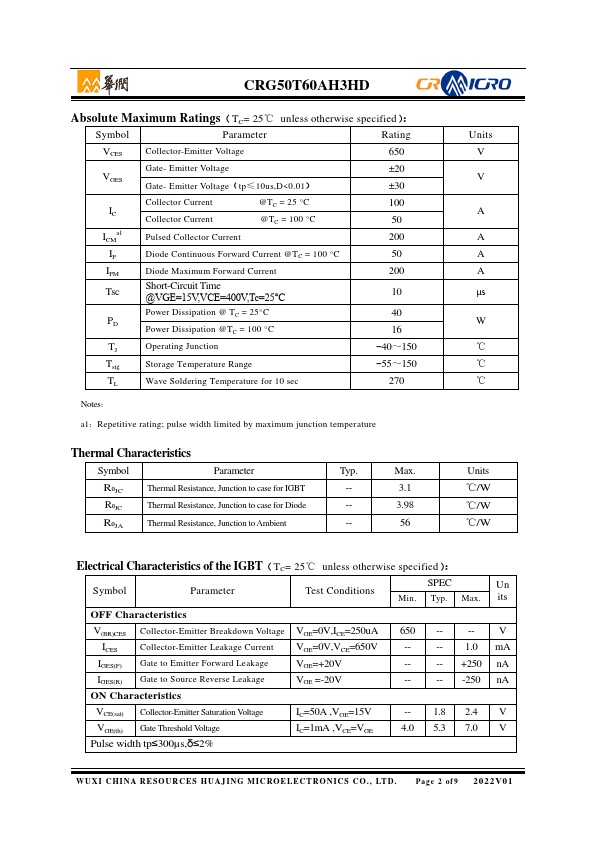

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CRG50T60AH3HD
Manufacturer
CR Micro
File Size
1.08 MB
Datasheet
CRG50T60AH3HD-CRMicro.pdf
Description
Silicon FS Trench IGBT
