CRG50T60AK3SD Silicon FS Trench IGBT

CRG50T60AK3SD Description

Silicon FS Trench IGBT CRG50T60AK3SD General .
Using HUAJING's proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

CRG50T60AK3SD Features

* FS Trench Technology, Positive temperature coefficient

CRG50T60AK3SD Applications

* Welding
* Solar Inverter
* UPS Package Parameters Type CRG50T60AK3SD Marking G50T60AK3SD Package TO-247 Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO. , LTD. Page 1 of 9 2022V02 CRG50T60AK3SD Absolute Maximum Ratings（TC= 25℃ unless otherwise specified）： Symbol P

📥 Download Datasheet

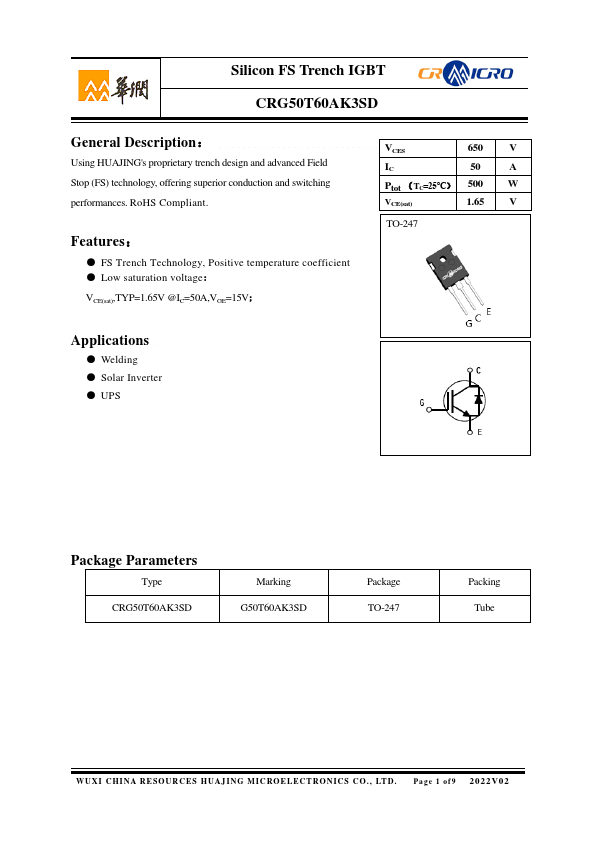

Preview of CRG50T60AK3SD PDF

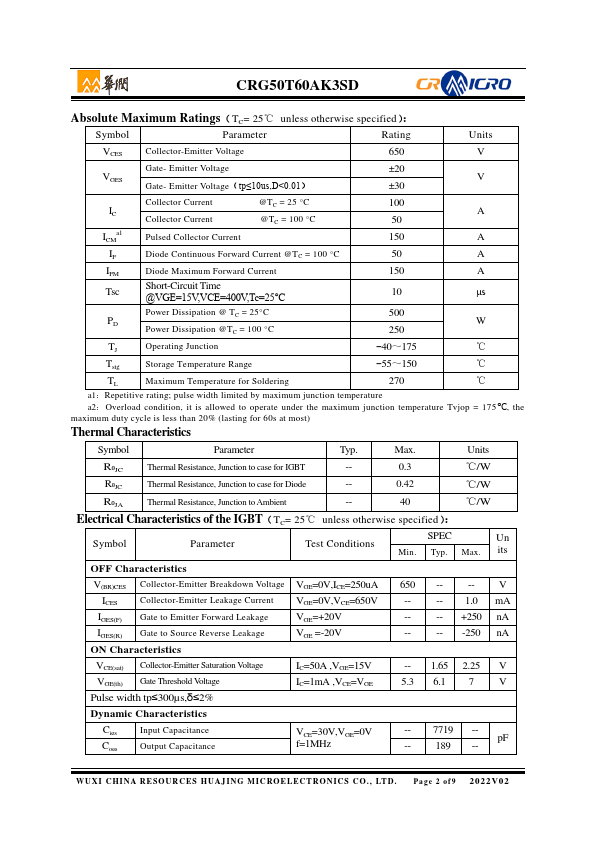

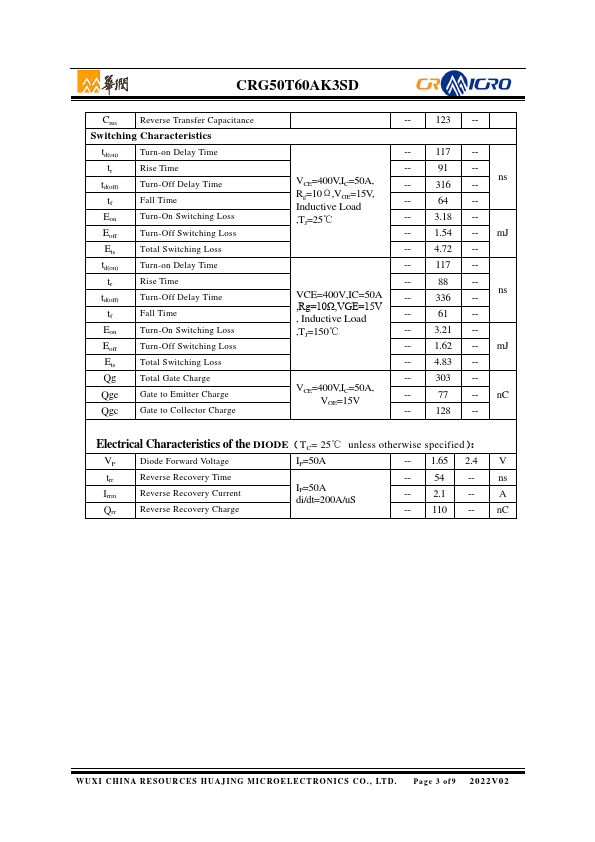

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CRG50T60AK3SD
Manufacturer
CR Micro
File Size
1.22 MB
Datasheet
CRG50T60AK3SD-CRMicro.pdf
Description
Silicon FS Trench IGBT
