CRG50T60AK3HD Silicon FS Trench IGBT

CR Micro

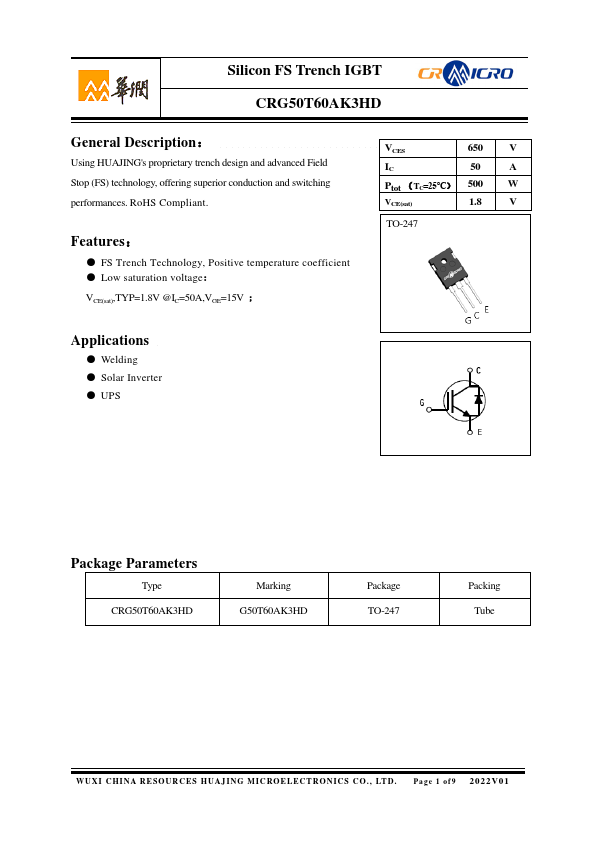

Description

Silicon FS Trench IGBT CRG50T60AK3HD General .
Using HUAJING's proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

📥 Download Datasheet

CRG50T60AK3HD Datasheet Preview — Preview of CRG50T60AK3HD PDF

Datasheet Specifications

Part number: CRG50T60AK3HD
Manufacturer: CR Micro
File Size: 1.21 MB
Datasheet: CRG50T60AK3HD-CRMicro.pdf
Description: Silicon FS Trench IGBT

Features

* FS Trench Technology, Positive temperature coefficient

Applications

* Welding
* Solar Inverter

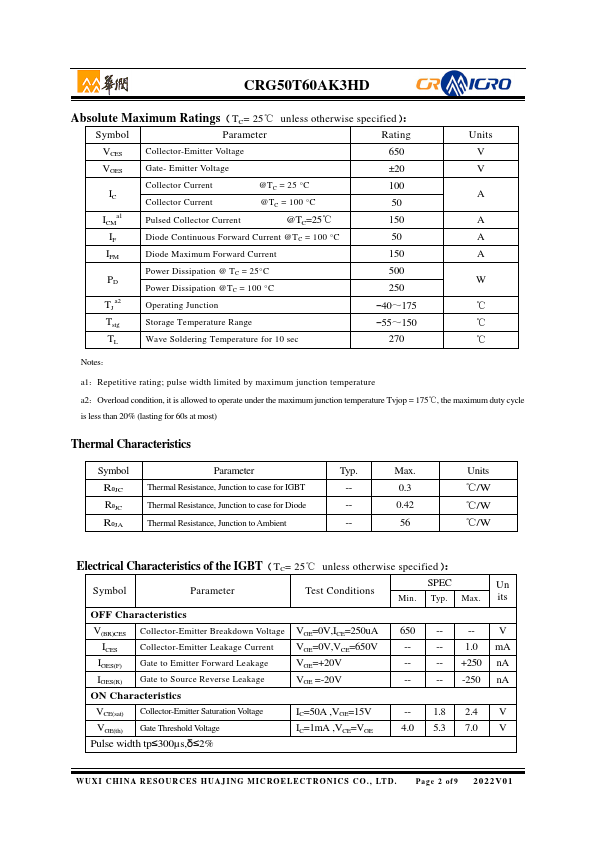

* UPS Package Parameters Type CRG50T60AK3HD Marking G50T60AK3HD Package TO-247 Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO. , LTD. Page 1 of 9 2022V01 CRG50T60AK3HD Absolute Maximum Ratings（TC= 25℃ unless otherwise specified）： Symbol P
