CRTD550P06N2-G Trench P-MOSFET

CRTD550P06N2-G Description

.

CRTD550P06N2-G Features

* Uses CRM advanced Trench technology
* Extremely low on-resistance RDS(on)
* Excellent QgxRDS(on) product(FOM)

CRTD550P06N2-G Applications

* Motor control and drive
* Electrical tools
* Lithium battery protection CRTD550P06N2-G Trench P-MOSFET -60V, 42mΩ, -24A Product Summary VDS -60V RDS(on) typ. ID 42mΩ -24A 100% DVDS Tested 100% Avalanche Tested Package Marking and Ordering Information Part # CRTD550

📥 Download Datasheet

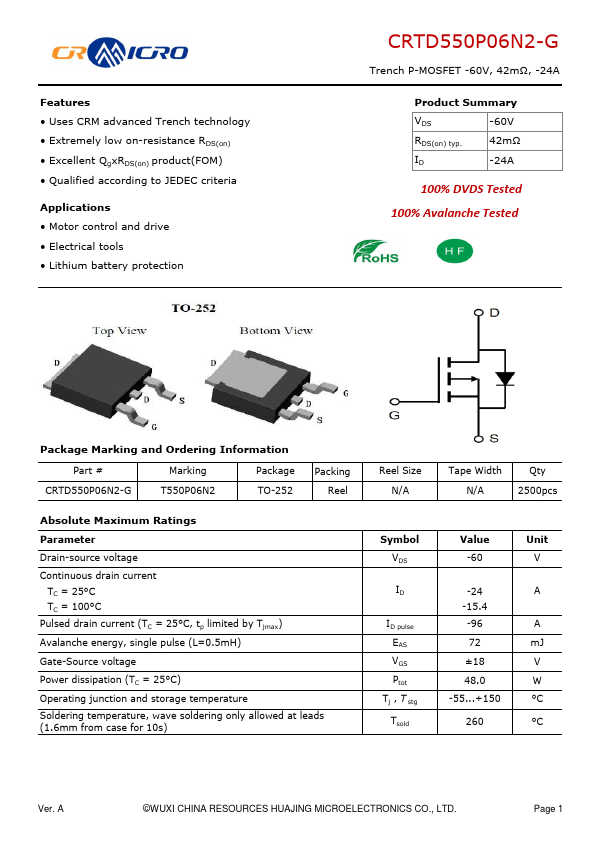

Preview of CRTD550P06N2-G PDF

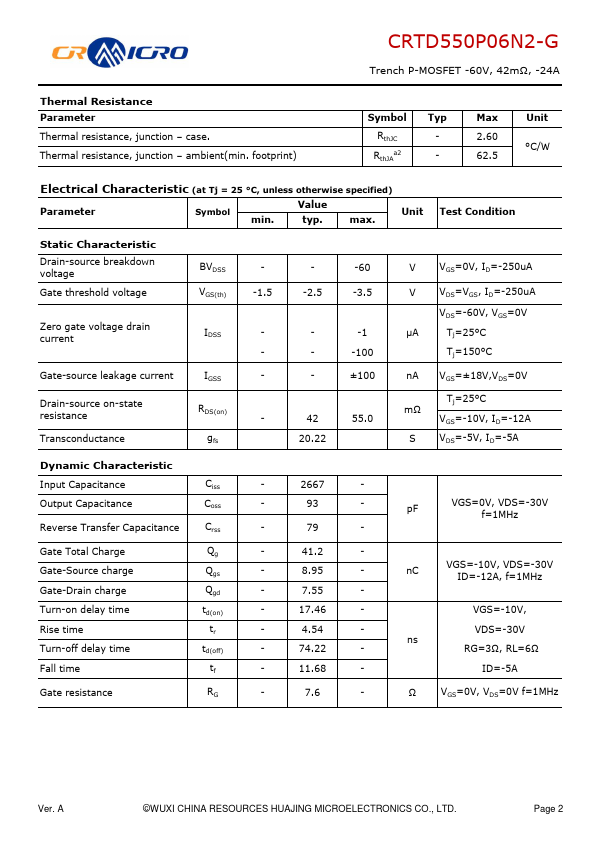

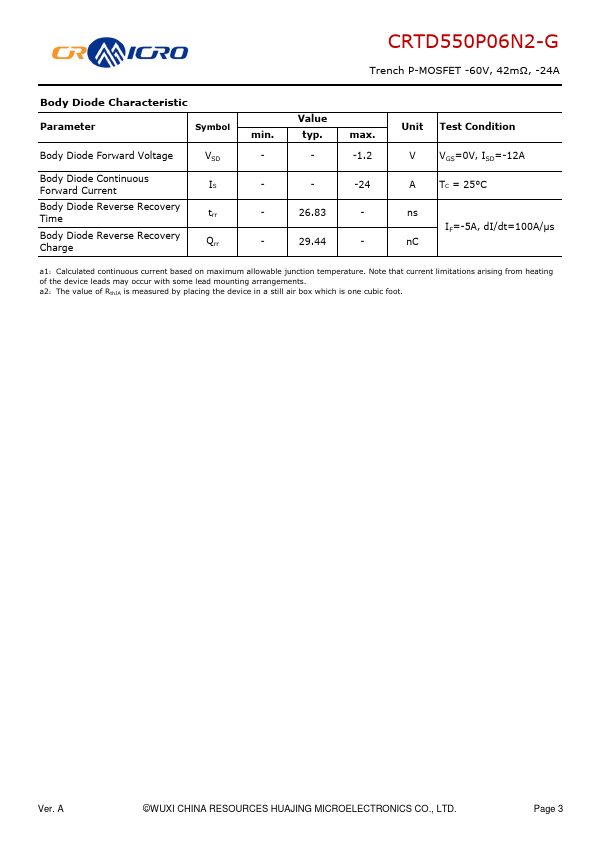

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CRTD550P06N2-G
Manufacturer
CR Micro
File Size
1.03 MB
Datasheet
CRTD550P06N2-G-CRMicro.pdf
Description
Trench P-MOSFET
