CS80N07A0 Datasheet, Mosfet, CR Micro

CS80N07A0 Features

  • Mosfet l Fast Switching l Low ON Resistance(Rdson≤7.9mΩ) l Low Gate Charge (Typical Data:51nC) l Low Reverse transfer capacitances(Typical:174pF) l 100% Single Pulse avalanche energy Test A

PDF File Details

Part number:

CS80N07A0

Manufacturer:

CR Micro

File Size:

304.06kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. VDSS 70 V CS80N07 A0, the silicon N-channel Enhanced ID(Silicon limited current) 80 A VDMOSFETs, is obtained by advanced Tren

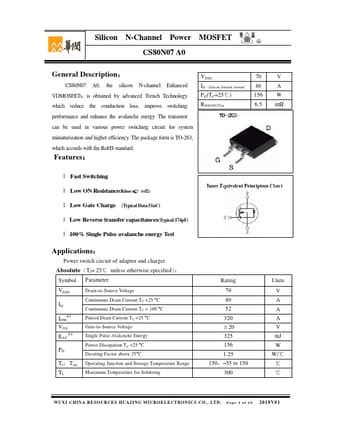

Datasheet Preview: CS80N07A0 📥 Download PDF (304.06kb)
Page 2 of CS80N07A0 Page 3 of CS80N07A0

CS80N07A0 Application

  • Applications Power switch circuit of adaptor and charger. Absolute(TJ= 25℃ unless otherwise specified): Symbol Parameter VDSS ID IDMa1 VGS EAS a2
