C5D10170H - Silicon Carbide Schottky Diode

C5D10170H Description

C5D10170H Silicon Carbide Schottky Diode Z-Rec® Rectifier .

C5D10170H Features

* 1.7kV Schottky Rectifier
* Zero Reverse Recovery Current
* High-Frequency Operation
* Temperature-Independent Switching
* Extremely Fast Switching
* Positive Temperature Coefficient on VF Benefits
* Replace Bipolar with Unipolar Rectif

C5D10170H Applications

* Switch Mode Power Supplies (SMPS)
* Boost diodes in PFC or DC/DC stages
* Free Wheeling Diodes in Inverter stages
* 1500V Solar Inverter Package TO-247-2 PIN 1 PIN 2 Part Number C5D10170H VRRM = 1700 V IF,(TC=135˚C) = 16 A Qc   = 1

📥 Download Datasheet

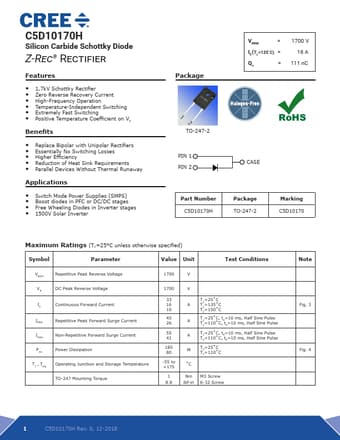

Preview of C5D10170H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C5D10170H
Manufacturer
CREE
File Size
570.40 KB
Datasheet
C5D10170H-CREE.pdf
Description
Silicon Carbide Schottky Diode
