4N33, 4N30 Photodarlington Optocoupler

4N33 Description

www.ct-micro.com .
The 4N29, 4N30, 4N31, 4N32, and 4N33 series consist of a photodarlington transistor optically coupled to an Infrared-emitting diode in a 6-lead DIP DM.

4N33 Features

* High isolation 5000 VRMS
* Patented coplanar structure DMC-Isolator®
* DC input with Transistor output
* Operating Temperature range - 55 °C to 100 °C
* External Creepage ≥ 7.4mm
* Distance Through Isolation ≥ 0.4mm
* Clearance Distance ≥ 7.5

4N33 Applications

* Switch mode power supplies
* Computer peripheral interface

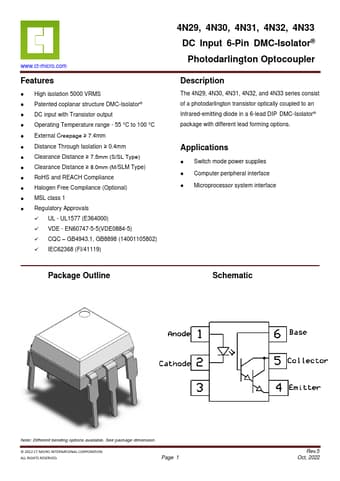

* Microprocessor system interface Package Outline Schematic Note: Different bending options available. See package dimension. © 2022 CT MICRO INTERNATIONAL CORPORATION ALL RIGHTS RESERVED. Page 1 Rev.5 Oct, 20
