H11B1 Photodarlington Optocoupler

H11B1 Description

4N29, 4N30, 4N31, 4N32, 4N33 H11B1, H11B2, H11B3, H11B255, TIL113 DC Input 6-Pin Photodarlington Optocoupler .
The 4N29, 4N30, 4N31, 4N32, 4N33, H11B1, H11B2, H11B3, H11B255, and TIL113 series consists of a photodarlington transistor optically coupled to a gall.

H11B1 Features

* High isolation 5000 VRMS
* CTR flexibility available see order information
* DC input with transistor output
* Temperature range - 55 °C to 100 °C
* Regulatory Approvals
* UL - UL1577 (E364000)
* VDE - EN60747-5-5(VDE0884-5)
* CQC
* GB4943.1, GB8898
* IE

H11B1 Applications

* Switch mode power supplies
* Computer peripheral interface

📥 Download Datasheet

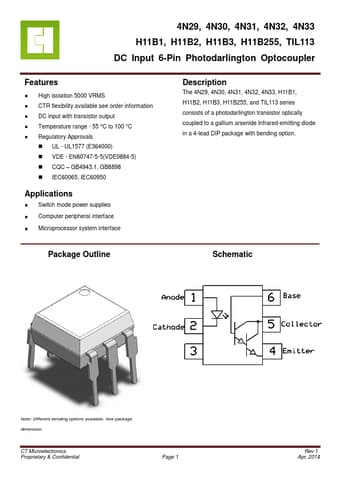

Preview of H11B1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
H11B1
Manufacturer
CT Micro
File Size
1.17 MB
Datasheet
H11B1-CTMicro.pdf
Description
Photodarlington Optocoupler
