H11L1 Datasheet, trigger equivalent, CT Micro

H11L1 Features

  • Trigger
  • High isolation 5000 VRMS
  • Patented coplanar structure DMC-Isolator®
  • DC input with Schmitt Trigger output
  • 1MHz(NRZ) data rate
  • Operating T

PDF File Details

Part number:

H11L1

Manufacturer:

CT Micro

File Size:

1.09MB

Download:

📄 Datasheet

Description:

Schmitt trigger. The H11L1, H11L2 and H11L3 series consist of a Schmitt Trigger optically coupled to a gallium arsenide Infrared-emitting diode in a 6

Datasheet Preview: H11L1 📥 Download PDF (1.09MB)

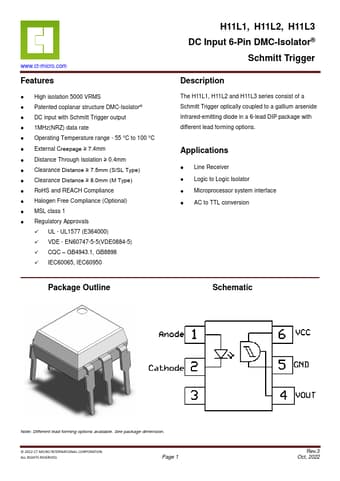

Page 2 of H11L1 Page 3 of H11L1

H11L1 Application

  • Applications
  • Line Receiver
  • Logic to Logic Isolator
  • Microprocessor system interface
  • AC to TTL conversion Sche
