H11A3, H11A1 - Phototransistor Optocoupler

CT Micro

H11A3 Datasheet Preview — This datasheet PDF includes multiple part numbers: H11A3, H11A1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	H11A3, H11A1
Manufacturer	CT Micro
File Size	1.60 MB
Description	Phototransistor Optocoupler
Datasheet	H11A1-CTMicro.pdf
Note	This datasheet PDF includes multiple part numbers: H11A3, H11A1. Please refer to the document for exact specifications by model.

H11A3 Product details

Description

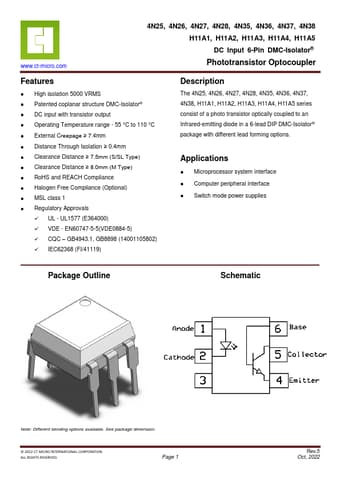

The 4N25, 4N26, 4N27, 4N28, 4N35, 4N36, 4N37, 4N38, H11A1, H11A2, H11A3, H11A4, H11A5 series consist of a photo transistor optically coupled to an Infrared-emitting diode in a 6-lead DIP DMC-Isolator® package with different lead forming options. Microprocessor system interface Computer peripheral interface Switch mode power supplies Package Outline Schematic Note: Different bending options available.See package dimension.© 2022 CT MICRO INTERNATIONAL CORPORAT

Features

High isolation 5000 VRMS.
Patented coplanar structure DMC-Isolator®.
DC input with transistor output.
Operating Temperature range - 55 °C to 110 °C.
External Creepage ≥ 7.4mm.
Distance Through Isolation ≥ 0.4mm.
Clearance Distance ≥ 7.5mm (S/SL Type).
Clearance Distance ≥ 8.0mm (M Type).
RoHS and REACH Compliance.
Halogen Free Compliance (Optional).
MSL class 1.
Regulatory Approvals.
UL - UL1577 (E364000).
VDE - EN607.
