H11B255, H11B1 - Photodarlington Optocoupler

CT Micro

H11B255 Datasheet Preview — This datasheet PDF includes multiple part numbers: H11B255, H11B1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	H11B255, H11B1
Manufacturer	CT Micro
File Size	1.17 MB
Description	Photodarlington Optocoupler
Datasheet	H11B1-CTMicro.pdf
Note	This datasheet PDF includes multiple part numbers: H11B255, H11B1. Please refer to the document for exact specifications by model.

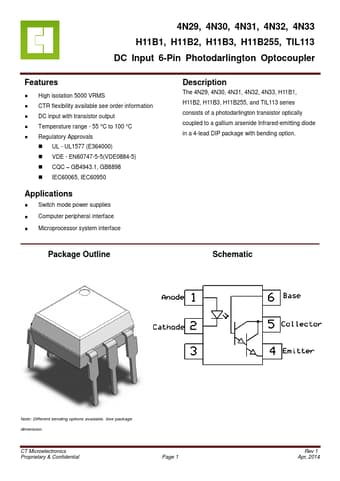

H11B255 Product details

Description

The 4N29, 4N30, 4N31, 4N32, 4N33, H11B1, H11B2, H11B3, H11B255, and TIL113 series consists of a photodarlington transistor optically coupled to a gallium arsenide Infrared-emitting diode in a 4-lead DIP package with bending option.

Features

High isolation 5000 VRMS.
CTR flexibility available see order information.
DC input with transistor output.
Temperature range - 55 °C to 100 °C.
Regulatory Approvals.
UL - UL1577 (E364000).
VDE - EN60747-5-5(VDE0884-5).
CQC.
GB4943.1, GB8898.
IEC60065, IEC60950.
