H11B815 Datasheet, Optocouplers, QT Optoelectronics

H11B815 Features

• Optocouplers
• Compact 4-pin package
• Current Transfer Ratio: 600% minimum (at IF = 1 mA)
• High isolation voltage between input and output (5300 VRMS)
• UL recogniz

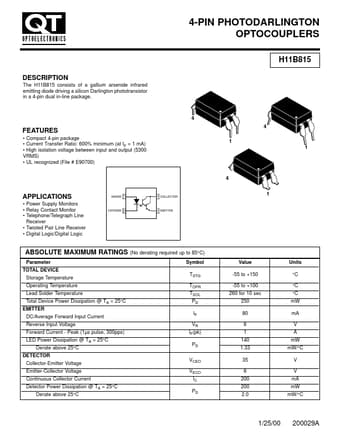

PDF File Details

Part number:

H11B815

Manufacturer:

QT Optoelectronics

File Size:

53.98kb

Download:

📄 Datasheet

Description:

4-pin photodarlington optocouplers. The H11B815 consists of a gallium arsenide infrared emitting diode driving a silicon Darlington phototransistor in a 4-pin dual in-li

H11B815 Application

• Applications
• Power Supply Monitors
• Relay Contact Monitor
• Telephone/Telegraph Line Receiver
• Twisted Pair Line
