H11B2X - ISOLATOR PHOTODARLINGTON

This page provides the datasheet information for the H11B2X, a member of the H11B1 ISOLATOR PHOTODARLINGTON family.

Datasheet Summary

Description

The H11B_ series of optically coupled isolators consist of an infrared light emitting diode and NPN silicon photodarlington in a space efficient dual in line plastic package.

Features

  • l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Current Transfer Ratio l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l All electrical parameters 100% tested l Custom electrical selections available.

📥 Download Datasheet

Datasheet preview – H11B2X

Datasheet Details

Part number H11B2X
Manufacturer ISOCOM COMPONENTS
File Size 80.49 KB
Description ISOLATOR PHOTODARLINGTON
Datasheet download datasheet H11B2X Datasheet
Additional preview pages of the H11B2X datasheet.

📁 Similar Datasheet

  • H11B2 - PHOTODARLINGTON OPTOCOUPLERS (Fairchild Semiconductor)
  • H11B2 - PHOTODARLINGTON OPTOCOUPLERS (QT Optoelectronics)
  • H11B2 - (H11B1 - H11B3) Optocoupler / Photodarlington Output / High Gain / With Base Connection (Vishay Siliconix)
  • H11B2 - Photodarlington Optocoupler (CT Micro)
  • H11B255 - PHOTODARLINGTON OPTOCOUPLERS (Fairchild Semiconductor)
  • H11B255 - PHOTODARLINGTON OPTOCOUPLERS (QT Optoelectronics)
  • H11B255 - Photodarlington Optocoupler (CT Micro)
  • H11B1 - 6-Pin DIP Optoisolators Darlington Output(Low Input Current) (Motorola Inc)
  • H11B1 - PHOTODARLINGTON OPTOCOUPLERS (Fairchild Semiconductor)
  • H11B1 - PHOTODARLINGTON OPTOCOUPLERS (QT Optoelectronics)
Other Datasheets by ISOCOM COMPONENTS
  • H11B2 - ISOLATOR PHOTODARLINGTON
  • H11B1 - ISOLATOR PHOTOTRANSISTOR
  • H11B1X - ISOLATOR PHOTODARLINGTON
  • H11B3 - ISOLATOR PHOTODARLINGTON
  • H11B3X - ISOLATOR PHOTODARLINGTON
  • H11A1 - ISOLATOR PHOTOTRANSISTOR
  • H11A2 - ISOLATOR PHOTOTRANSISTOR
  • H11A3 - ISOLATOR PHOTOTRANSISTOR

Full PDF Text Transcription

Click to expand full text

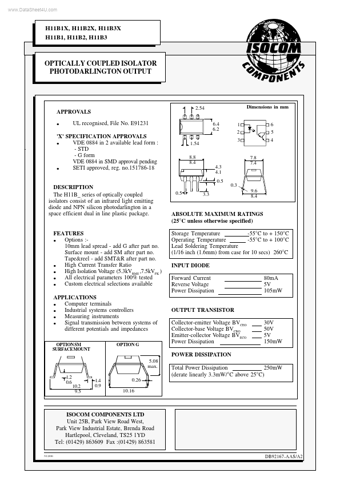

www.DataSheet4U.com H11B1X, H11B2X, H11B3X H11B1, H11B2, H11B3 OPTICALLY COUPLED ISOLATOR PHOTODARLINGTON OUTPUT APPROVALS l 2.54 6.4 6.2 1.54 8.8 8.4 1 2 3 Dimensions in mm UL recognised, File No. E91231 - 'X' SPECIFICATION APPROVALS l VDE 0884 in 2 available lead form : - STD - G form VDE 0884 in SMD approval pending l SETI approved, reg. no.151786-18 DESCRIPTION The H11B_ series of optically coupled isolators consist of an infrared light emitting diode and NPN silicon photodarlington in a space efficient dual in line plastic package. 6 5 4 4.3 4.1 0.5 0.3 7.8 7.4 0.5 3.3 9.6 8.4 ABSOLUTE MAXIMUM RATINGS (25°C unless otherwise specified) Storage Temperature -55°C to + 150°C Operating Temperature -55°C to + 100°C Lead Soldering Temperature (1/16 inch (1.
