H11B255 - PHOTODARLINGTON OPTOCOUPLERS

H11B255 Description

PHOTODARLINGTON OPTOCOUPLERS .
The CNX48U, H11BX, MOC8080 and TIL113 have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.

H11B255 Features

* High sensitivity to low input drive current
* Meets or exceeds all JEDEC Registered Specifications

H11B255 Applications

* Low power logic circuits 6 Telecommunications equipment Portable electronics Solid state relays Interfacing coupling systems of different potentials and impedances. CATHODE 2 5 COLLECTOR 1 N/C 3 4 EMITTER Parameter TOTAL DEVICE Storage Temperatur

📥 Download Datasheet

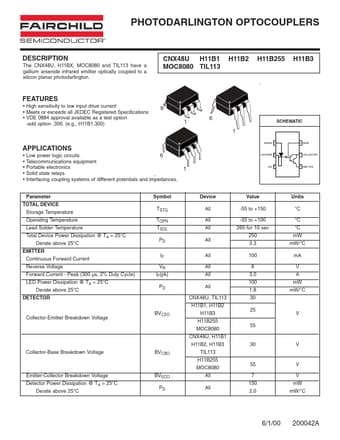

Preview of H11B255 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
H11B255
Manufacturer
Fairchild Semiconductor
File Size
158.70 KB
Datasheet
H11B255_FairchildSemiconductor.pdf
Description
PHOTODARLINGTON OPTOCOUPLERS
