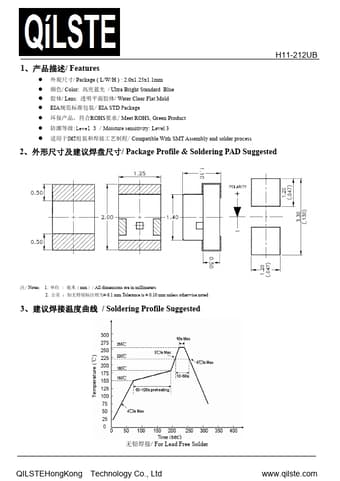

Additional preview pages of the H11-212UB datasheet.
Product details
Features
/ Package ( L/W/H ) : 2.0x1.25x1.1mm.
/ Color: / Ultra Bright Standard Blue.
/ Lens: / Water Clear Flat Mold.
EIA/ EIA STD Package.
，ROHS/ Meet ROHS, Green Product.
:Level 3 / Moisture sensitivity: Level 3.
SMT/ Compatible With SMT Assembly and solder process
2、/ Package Profile & Soldering PAD Suggested
/ Notes: 1. : （mm）/ All dimensions are in millimeters 2. ：± 0.1 mm Tolerance is ± 0.10 mm unless otherwise noted
3、 / Soldering Profile Suggested
/ For L.
