H1101, H1100 Datasheet - Pulse

H1101, H1100, (H11xx) 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS

10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS With Various Turns Ratios RoHS-5 peak reflow temperature rating 235°C RoHS-6 peak reflow temperature .

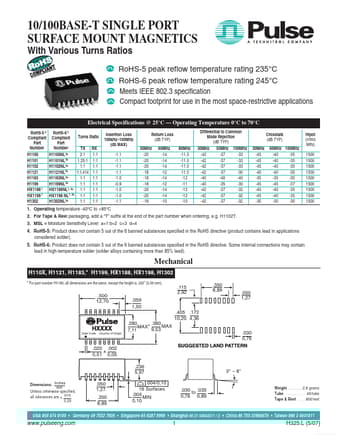

datasheet Preview Page 1 from Datasheet4u.com

H1100-Pulse.pdf

H1101 Datasheet Preview — This datasheet PDF includes multiple part numbers: H1101, H1100. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

H1101, H1100

Manufacturer:

Pulse

File Size:

123.72 KB

Description:

(H11xx) 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS

Note:

This datasheet PDF includes multiple part numbers: H1101, H1100.
Please refer to the document for exact specifications by model.

Applications

* Electrical Specifications @ 25°C
* Operating Temperature 0°C to 70°C RoHS-5 4 Compliant Part Number H1100 H1101 H1102 H1121 H1183 H1199 HX1188 1 HX1198 1 H1302 RoHS-6 5 Turns Ratio Compliant Part Number TX RX H1100NL3a 2:1 1:1 H1101NL3a 1.25:1 1:1 H1102NL3a 1:1 1:1 H1121NL3c 1:1.414 1:1 H118
