H11-212UO - SMD LED

Datasheet Summary

Features

  • / Package ( L/W/H ) : 2.0x1.25x1.1mm.
  • / Color: / Ultra Bright Standard Orange.
  • / Lens: / Water Clear Flat Mold.
  • EIA/ EIA STD Package.
  • ，ROHS/ Meet ROHS, Green Product.
  • :Level 3 / Moisture sensitivity: Level 3.
  • SMT/ Compatible With SMT Assembly and solder process H11-212UO 2、/ Package Profile & Soldering PAD Suggested / Notes: 1. : （mm）/ All dimensions are in millimeters 2. ：± 0.1 mm Tolerance is ± 0.10 mm unless otherwise noted 3、 / Soldering Profile Sugg.

📥 Download Datasheet

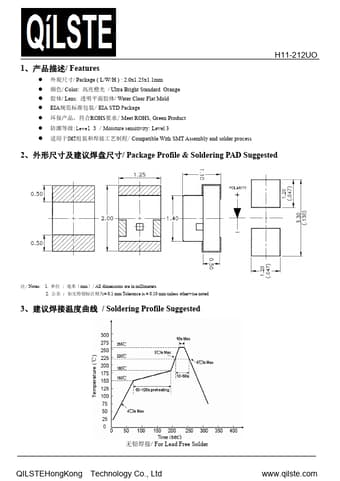

Datasheet preview – H11-212UO

Datasheet Details

Part number H11-212UO
Manufacturer QILSTE
File Size 1.29 MB
Description SMD LED
Datasheet download datasheet H11-212UO Datasheet
Additional preview pages of the H11-212UO datasheet.

📁 Similar Datasheet

  • H1100 - (H11xx) 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS (Pulse)
  • H1100NL - 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS (Pulse)
  • H1101 - (H11xx) 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS (Pulse)
  • H1101NL - 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS (Pulse)
  • H1102 - LAN DISCRETE TRANSFORMER MODULES (PULSE)
  • H1102 - (H11xx) 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS (Pulse)
  • H1102NL - 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS (Pulse)
  • H1116 - PNP SILICON TRANSISTOR (SHANTOU HUASHAN ELECTRONIC DEVICES)
  • H1117 - 1.2A Low Dropout Positive Voltage Regulator (Hi-Sincerity)
  • H1117 - 10/100 BASE-T SINGLE PORT TRANSFORMER MODULES (Pulse)
Other Datasheets by QILSTE

Full PDF Text Transcription

Click to expand full text
1、/ Features  / Package ( L/W/H ) : 2.0x1.25x1.1mm  / Color: / Ultra Bright Standard Orange  / Lens: / Water Clear Flat Mold  EIA/ EIA STD Package  ，ROHS/ Meet ROHS, Green Product  :Level 3 / Moisture sensitivity: Level 3  SMT/ Compatible With SMT Assembly and solder process H11-212UO 2、/ Package Profile & Soldering PAD Suggested / Notes: 1. : （mm）/ All dimensions are in millimeters 2. ：± 0.1 mm Tolerance is ± 0.10 mm unless otherwise noted 3、 / Soldering Profile Suggested / For Lead Free Solder QILSTEHongKong Technology Co., Ltd www.qilste.com H11-212UO 4、/ Absolute Maximum Ratings （Ta=25℃） Parameter Symbol Rating Pd 75 Power Dissipation Unit mW / Peak Forward Current (1/10 , 0.
