H1100NL - 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS

Pulse

H1100NL Description

10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS With Various Turns Ratios RoHS peak reflow temperature rating: 245°C°° Meets IEEE 802.3 specification.

H1100NL Applications

* Electrical Specifications @ 25°C
* Operating Temperature 0°C to 70°C RoHS Compliant Part Number H1100NL3a H1101NL3a H1102NL 3a Turns Ratio TX 2:1 1.25:1 1:1 1:1.414 1:1 1:1 1:1 1:1 1:1 RX 1:1 1:1 1:1 1:1 1:1 1:1 1:1 1:1 1:1 Insertion Loss 100 kHz-100 MHz (dB MAX) -1.1 -1.1 -1.1 -1.1 -1.0 -

📥 Download Datasheet

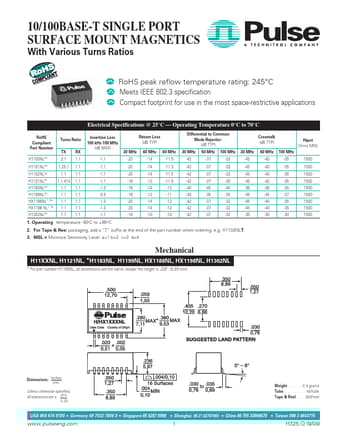

H1100NL Datasheet Preview — Preview of H1100NL PDF

Datasheet Details

Part number: H1100NL
Manufacturer: Pulse
File Size: 273.87 KB
Datasheet: H1100NL-Pulse.pdf
Description: 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS
