H1101NL Datasheet - Pulse

H1101NL 10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS

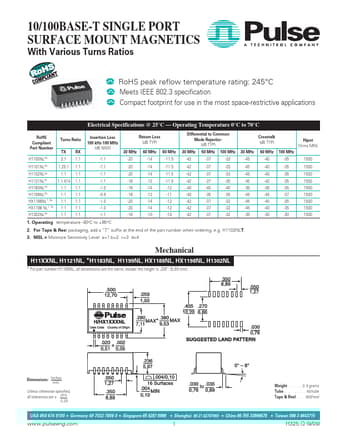

10/100BASE-T SINGLE PORT SURFACE MOUNT MAGNETICS With Various Turns Ratios RoHS peak reflow temperature rating: 245°C°° Meets IEEE 802.3 specification Compact footprint for use in the most space-restrictive applications Electrical Specifications @ 25°C Operating Temperature 0°C to 70°C RoHS Compliant Part Number H1100NL3a H1101NL3a H1102NL 3a Turns Ratio TX 2:1 1.25:1 1:1 1:1.414 1:1 1:1 1:1 1:1 1:1 RX 1:1 1:1 1:1 1:1 1:1 1:1 1:1 1:1 1:1 Insertion Loss 100 kHz-100 MHz (dB MAX) -1.1 -.

H1101NL Datasheet (273.87 KB)

Preview of H1101NL PDF
H1101NL Datasheet Preview Page 2 H1101NL Datasheet Preview Page 3

Datasheet Details

Part number:

H1101NL

Manufacturer:

Pulse

File Size:

273.87 KB

Description:

10/100base-t single port surface mount magnetics.
