H11B1M - General Purpose 6-Pin Photodarlington Optocoupler

Datasheet Summary

Description

The 4N29M, 4N30M, 4N32M, 4N33M, H11B1M, and TIL113M have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.

Low Power Logic Circuits Telecommunications Equipment Portable Electronics Solid State Relays Interfacing Co

Features

  • High Sensitivity to Low Input Drive Current.
  • Meets or Exceeds All JEDEC Registered Specifications.
  • Safety and Regulatory Approvals:.
  • UL1577, 4,170 VACRMS for 1 Minute.
  • DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage.

📥 Download Datasheet

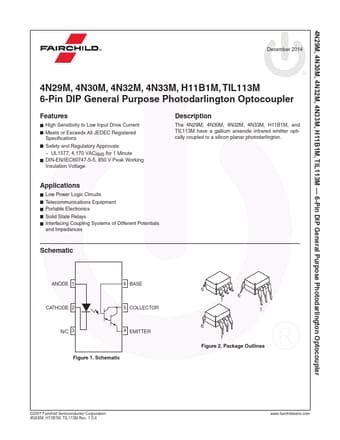

Datasheet preview – H11B1M
