H11B1X - ISOLATOR PHOTODARLINGTON

This page provides the datasheet information for the H11B1X, a member of the H11B1 ISOLATOR PHOTODARLINGTON family.

Datasheet Summary

Description

The H11B_ series of optically coupled isolators consist of an infrared light emitting diode and NPN silicon photodarlington in a space efficient dual in line plastic package.

Features

  • l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Current Transfer Ratio l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l All electrical parameters 100% tested l Custom electrical selections available.

📥 Download Datasheet

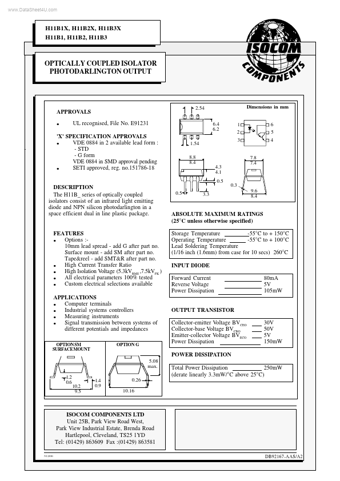

Datasheet preview – H11B1X

Datasheet Details

Part number H11B1X
Manufacturer ISOCOM COMPONENTS
File Size 80.49 KB
Description ISOLATOR PHOTODARLINGTON
Datasheet download datasheet H11B1X Datasheet
