H11A1, H11A1X, ISOLATOR PHOTOTRANSISTOR

www.DataSheet4U.com H11A1X, H11A2X, H11A3X, H11A4X, H11A5X H11A1, H11A2, H11A3, H11A4, H11A5 OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR OUTPUT APPR.
The H11A series of optically coupled isolators consist of infrared light emitting diode and NPN silicon photo transistor in a standard 6 pin dual in l.

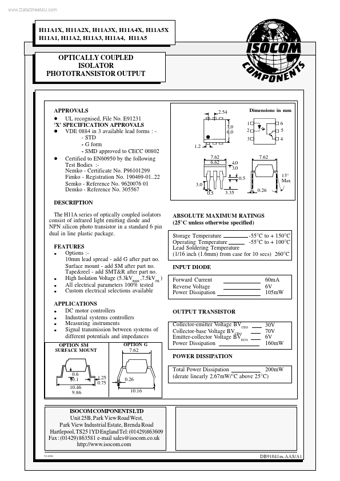

datasheet Preview Page 1 from Datasheet4u.com

H11A1X_ISOCOMCOMPONENTS.pdf

H11A1 Datasheet Preview — This datasheet PDF includes multiple part numbers: H11A1, H11A1X. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

H11A1, H11A1X

Manufacturer:

ISOCOM COMPONENTS

File Size:

77.22 KB

Description:

ISOLATOR PHOTOTRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: H11A1, H11A1X.
Please refer to the document for exact specifications by model.

Features

* Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l All electrical parameters 100% tested l Custom electrical selections available l 2.54 7.0 6.0 1.2 7.62 6.62 Dimensions in mm 1

Applications

* DC motor controllers l Industrial systems controllers l Measuring instruments l Signal transmission between systems of different potentials and impedances l OPTION SM SURFACE MOUNT OPTION G 7.62 0.6 0.1 10.46 9.86 1.25 0.75 0.26 10.16 Total Power Dissipation 200mW (derate linearly 2.67mW/°C a
