H11B1 - ISOLATOR PHOTOTRANSISTOR

H11B1 Description

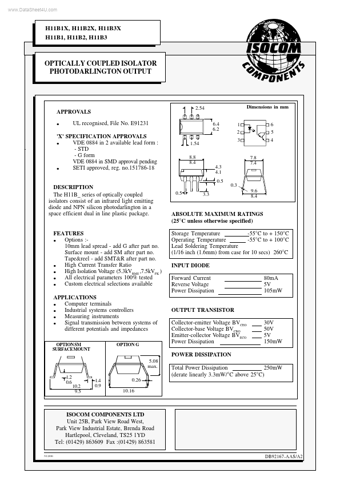

www.DataSheet4U.com H11B1X, H11B2X, H11B3X H11B1, H11B2, H11B3 OPTICALLY COUPLED ISOLATOR PHOTODARLINGTON OUTPUT APPROVALS l 2.54 6.4 6.2 1.54 8.8.
The H11B_ series of optically coupled isolators consist of an infrared light emitting diode and NPN silicon photodarlington in a space efficient dual.

H11B1 Applications

* Computer terminals l Industrial systems controllers l Measuring instruments l Signal transmission between systems of different potentials and impedances l OPTION SM SURFACE MOUNT OPTION G 5.08 max. 1.2 0.6 1.4 0.9 0.26 10.16 Total Power Dissipation 250mW (derate linearly 3.3mW/°C above 25°C) 10
