H11A1 - Phototransistor Optocoupler

CT Micro

H11A1 Datasheet Preview — Preview of H11A1 PDF

Datasheet Details

Part number	H11A1
Manufacturer	CT Micro
File Size	1.60 MB
Description	Phototransistor Optocoupler
Datasheet	H11A1-CTMicro.pdf

H11A1 Product details

Description

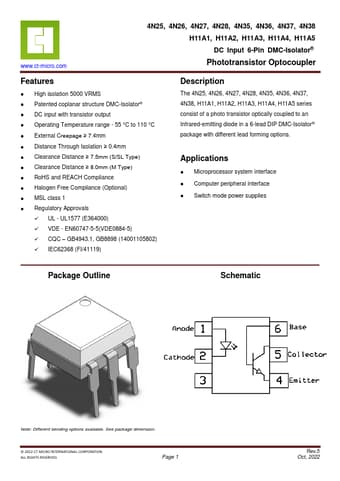

The 4N25, 4N26, 4N27, 4N28, 4N35, 4N36, 4N37, 4N38, H11A1, H11A2, H11A3, H11A4, H11A5 series consist of a photo transistor optically coupled to an Infrared-emitting diode in a 6-lead DIP DMC-Isolator® package with different lead forming options. Microprocessor system interface Computer peripheral interface Switch mode power supplies Package Outline Schematic Note: Different bending options available.See package dimension.© 2022 CT MICRO INTERNATIONAL CORPORAT

Features

High isolation 5000 VRMS.
Patented coplanar structure DMC-Isolator®.
DC input with transistor output.
Operating Temperature range - 55 °C to 110 °C.
External Creepage ≥ 7.4mm.
Distance Through Isolation ≥ 0.4mm.
Clearance Distance ≥ 7.5mm (S/SL Type).
Clearance Distance ≥ 8.0mm (M Type).
RoHS and REACH Compliance.
Halogen Free Compliance (Optional).
MSL class 1.
Regulatory Approvals.
UL - UL1577 (E364000).
VDE - EN607.
