H11B2

Photodarlington Optocoupler

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Isocom Components H11B2 OPTOISO 5.3KV DARL W/BASE 6-DIP DigiKey 236 25025 units
$0.21

H11B2 Datasheet (1.17 MB)

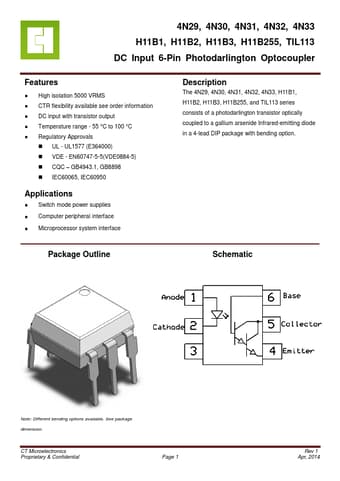

Preview of H11B2 PDF Datasheet

Datasheet Details

Part number:

H11B2

Manufacturer:

CT Micro

File Size:

1.17 MB

Description:

Photodarlington optocoupler

H11B2 Features

* High isolation 5000 VRMS

* CTR flexibility available see order information

* DC input with transistor output

* Temperature range - 55 °C to 100 °C

* Regulatory Approvals

* UL - UL1577 (E364000)

* VDE - EN60747-5-5(VDE0884-5)

* CQC

* GB4943.1, GB8898

* IE

H11B2 General Description

The 4N29, 4N30, 4N31, 4N32, 4N33, H11B1, H11B2, H11B3, H11B255, and TIL113 series consists of a photodarlington transistor optically coupled to a gallium arsenide Infrared-emitting diode in a 4-lead DIP package with bending option. Package Outline Schematic Note: Different bending options availab.
