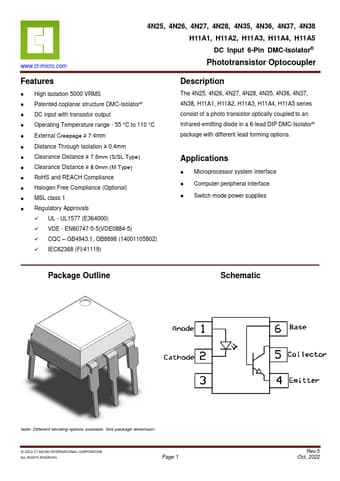

H11A4 Datasheet, Optocoupler, CT Micro

H11A4 Features

• Optocoupler
• High isolation 5000 VRMS
• Patented coplanar structure DMC-Isolator®
• DC input with transistor output
• Operating Temperature range - 55 °C to 110 °C

PDF File Details

Part number:

H11A4

Manufacturer:

CT Micro

File Size:

1.60MB

Download:

📄 Datasheet

Description:

Phototransistor optocoupler. The 4N25, 4N26, 4N27, 4N28, 4N35, 4N36, 4N37, 4N38, H11A1, H11A2, H11A3, H11A4, H11A5 series consist of a photo transistor optically

H11A4 Application

• Applications
• Microprocessor system interface
• Computer peripheral interface
• Switch mode power supplies Package Outline
