GC0351P-3

Notebook Speaker

GC0351P-3 General Description

speaker rev. page 1 of 2 date 04/2009 16 x 35 mm 4 Ohm ± 15% at 1.2 KHz 2 V 630 Hz ± 126 Hz at 2 V 82 dB/w ± 3 dB 1 w 50 cm ave. at 0.6K, 0.8K, 1K, 1.2K Hz Fo Hz ~ 13 KHz max 10 dB nominal 1 W handling capacity 2W must be normal at program source 1 W must be normal at sine wave 2 V s.

GC0351P-3 Datasheet (265.79 KB)

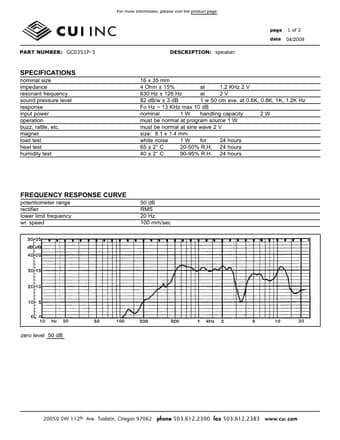

Preview of GC0351P-3 PDF

Datasheet Details

Part number:

GC0351P-3

Manufacturer:

CUI

File Size:

265.79 KB

Description:

Notebook speaker.
PART NUMBER: GC0351P-3 SPECIFICATIONS nominal size impedance resonant frequency sound pressure level response input power operation buzz, rattle, etc..
