GC0401MP

speaker

GC0401MP General Description

speaker Date: 7/03/2007 Unit: mm Page No: 1 of 2 40 mm 1 ½ inch. 8 Ohm ± 15% at 0.8 KHz 1 V 600 Hz ± 120 Hz at 1V 80 dB/w ± 3 dB 0.2 w 50 cm ave at 1K, 1.5K, 1.8K, 2K Hz Fo Hz ~ 8 KHz max 10 dB Nominal 0.2 W Handling capacity 0.5 W must be normal at program source 0.2 W must be nor.

GC0401MP Datasheet (342.34 KB)

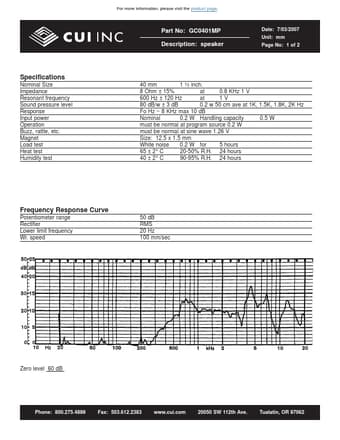

Preview of GC0401MP PDF

Datasheet Details

Part number:

GC0401MP

Manufacturer:

CUI

File Size:

342.34 KB

Description:

Speaker.
Specifications Nominal Size Impedance Resonant frequency Sound pressure level Response Input power Operation Buzz, rattle, etc. Magnet Load test Heat .
