BAV70S3 - Double diode

BAV70S3 Description

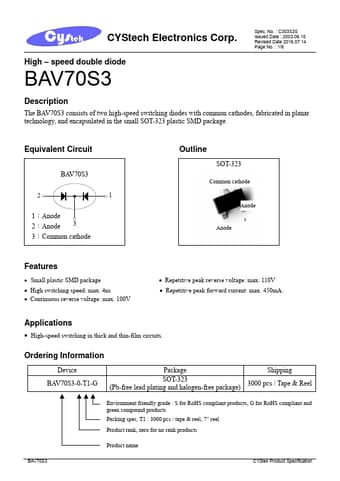

CYStech Electronics Corp.High * speed double diode BAV70S3 Spec.No.: C303S3S Issued Date : 2003.06.10 Revised Date 2016.07.14 Page No.: 1.
The BAV70S3 consists of two high-speed switching diodes with common cathodes, fabricated in planar technology, and encapsulated in the small SOT-323 p.

BAV70S3 Features

* Small plastic SMD package
* High switching speed: max. 4ns
* Continuous reverse voltage: max. 100V
* Repetitive peak reverse voltage: max. 110V

BAV70S3 Applications

* High-speed switching in thick and thin-film circuits. Ordering Information Device BAV70S3-0-T1-G Package Shipping SOT-323 (Pb-free lead plating and halogen-free package) 3000 pcs / Tape & Reel Environment friendly grade : S for RoHS compliant products, G for RoHS compliant and green
