BAV70SRA-Q - Quad high-speed switching diodes

Product Overview

nexperia

Datasheet Details

Part number	BAV70SRA-Q
Manufacturer	nexperia
File Size	245.95 KB
Description	Quad high-speed switching diodes
Datasheet	BAV70SRA-Q Datasheet

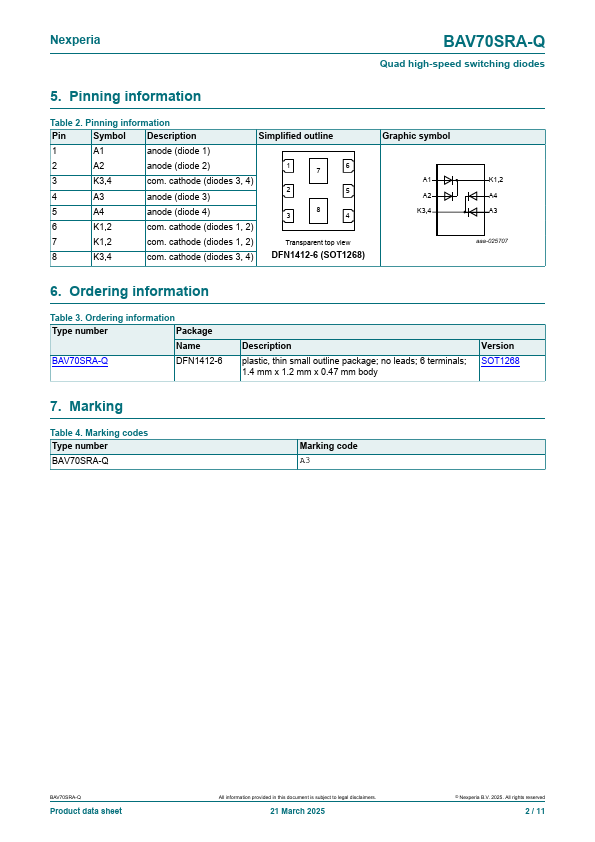

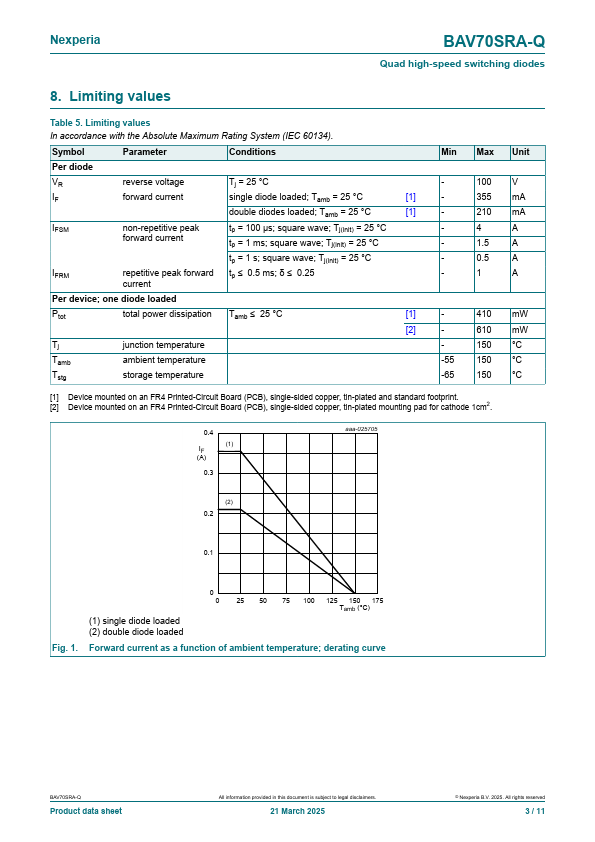

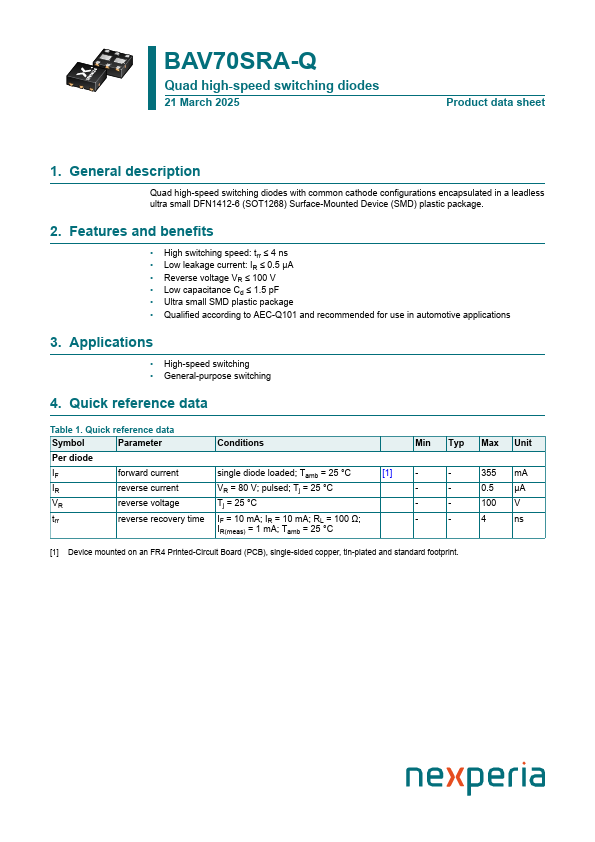

Additional preview pages of the BAV70SRA-Q datasheet.

Product details

Description

Quad high-speed switching diodes with common cathode configurations encapsulated in a leadless ultra small DFN1412-6 (SOT1268) Surface-Mounted Device (SMD) plastic package.

Features

High switching speed: trr ≤ 4 ns.
Low leakage current: IR ≤ 0.5 µA.
Reverse voltage VR ≤ 100 V.
Low capacitance Cd ≤ 1.5 pF.
Ultra small SMD plastic package.
Qualified according to AEC-Q101 and recommended for use in automotive.
