BAV70SRA Datasheet, Diodes, nexperia

BAV70SRA Features

  • Diodes
  • High switching speed: trr ≤ 4 ns
  • Low leakage current: IR ≤ 0.5 µA
  • Reverse voltage VR ≤ 100 V
  • Low capacitance Cd ≤ 1.5 pF
  • Ultra small SM

PDF File Details

Part number:

BAV70SRA

Manufacturer:

nexperia ↗

File Size:

239.73kb

Download:

📄 Datasheet

Description:

Quad high-speed switching diodes. Quad high-speed switching diodes with common cathode configurations encapsulated in a leadless ultra small DFN1412-6 (SOT1268) Surfac

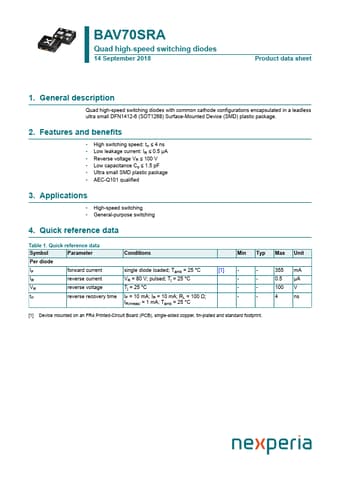

Datasheet Preview: BAV70SRA 📥 Download PDF (239.73kb)
Page 2 of BAV70SRA Page 3 of BAV70SRA

BAV70SRA Application

  • Applications
  • High-speed switching
  • General-purpose switching 4. Quick reference data Table 1. Quick reference data Symbol Par
