BTB1188AM3, PNP Transistor

CYStech Electronics Corp.Spec.No.: C812M3-A Issued Date : 2011.02.17 Revised Date : Page No.: 1/7 Low Vcesat PNP Epitaxial Planar Transistor BTB.

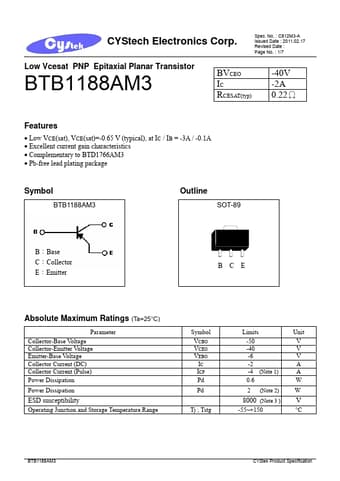

datasheet Preview Page 1 from Datasheet4u.com

BTB1188AM3-CYStech.pdf

BTB1188AM3 Datasheet Preview — Preview of BTB1188AM3 PDF

Datasheet Details

Part number:

BTB1188AM3

Manufacturer:

CYStech

File Size:

210.80 KB

Description:

PNP Transistor

Features

* Low VCE(sat), VCE(sat)=-0.65 V (typical), at IC / IB = -3A / -0.1A
* Excellent current gain characteristics
* Complementary to BTD1766AM3
* Pb-free lead plating package Symbol BTB1188AM3 Outline SOT-89 B：Base C：Collector E：Emitter BCE Absolute Maximum Ratings (
