BTB1188M3R - PNP Transistor

BTB1188M3R Description

CYStech Electronics Corp.Spec.No.: C623M3 Issued Date : 2003.05.25 Revised Date : 2013.08.12 Page No.: 1/7 Low Vcesat PNP Epitaxial Planar Trans.

BTB1188M3R Features

* Low VCE(sat), VCE(sat)=-0.65 V (typical), at IC / IB = -3A / -0.1A
* Excellent current gain characteristics
* Complementary to BTD1766M3
* Pb-free lead plating and halogen-free package Symbol BTB1188M3R Outline SOT-89 B：Base C：Collector E：Emitter BCE Absolute M

📥 Download Datasheet

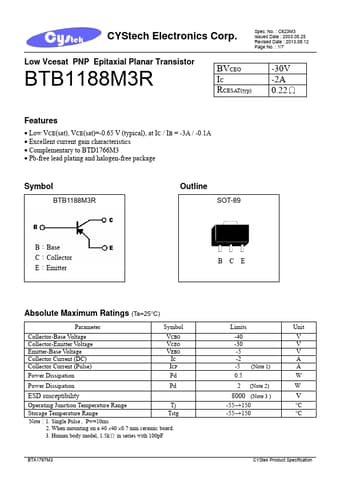

Preview of BTB1188M3R PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BTB1188M3R
Manufacturer
CYStech
File Size
211.32 KB
Datasheet
BTB1188M3R-CYStech.pdf
Description
PNP Transistor
