CYT101

Voltage and Current Controller

CYT101 Features

* Two ored error amplifiers with built-in current generator with enable/disable function. 1.24V series voltage reference with trimmed 1% tolerance (CYT101A). 4.5 to 32V supply voltage range. 5kV ESD protection. Temperature-compensated. D DIP8 (8-Pin Pl

CYT101 General Description

The CYT101/CYT101A provide a pin-for-pin replacement of TSM101/A. This is an 8-pin voltage & current controller incorporates a trimmed series bandgap voltage reference, two ored error amplifiers and a current source. This IC provides a feedback to the primary side of a power supply by comparing the .

CYT101 Datasheet (135.48 KB)

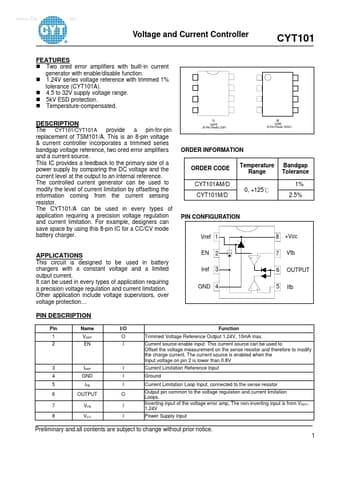

Preview of CYT101 PDF

Datasheet Details

Part number:

CYT101

Manufacturer:

CYT

File Size:

135.48 KB

Description:

Voltage and current controller.
