CYT2606L - PFM Step-Up DC-DC Converter

Description

The CYT2606L Series are PFM step-up DC-DC converters with very low ripple noise due to the high operation frequency.

The maximum operation frequency is 400KHz.

Only three components are required to realize the conversion from the battery voltage to a selected output voltage.

Features

  • 400KHz Maximum Operation Frequency 2.0V to 5.0V Output Voltage With 0.1V Step Low Start-up Voltage: 0.8V at 1mA 2% Output Voltage Accuracy Up to 88% Efficiency Output current: 300mA at 2.5V input, 3.3V output Low Ripple and Low Noise Output Current Extendable by External Switch.

📥 Download Datasheet

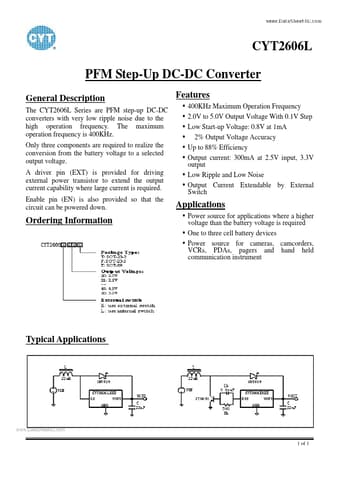

Datasheet preview – CYT2606L

Datasheet Details

Part number CYT2606L
Manufacturer CYT
File Size 351.36 KB
Description PFM Step-Up DC-DC Converter
Datasheet download datasheet CYT2606L Datasheet
Additional preview pages of the CYT2606L datasheet.
