CYT2B74BADQ0AZEGS, CYT2B7 - T2G 32-bit Automotive MCU

Infineon

The CYT2B74BADQ0AZEGS by Infineon is a T2G 32-bit Automotive MCU. Below is the official datasheet preview.

Datasheet Details

Part number	CYT2B74BADQ0AZEGS, CYT2B7
Manufacturer	Infineon
File Size	1.36 MB
Description	T2G 32-bit Automotive MCU
Datasheet	CYT2B7-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: CYT2B74BADQ0AZEGS, CYT2B7. Please refer to the document for exact specifications by model.

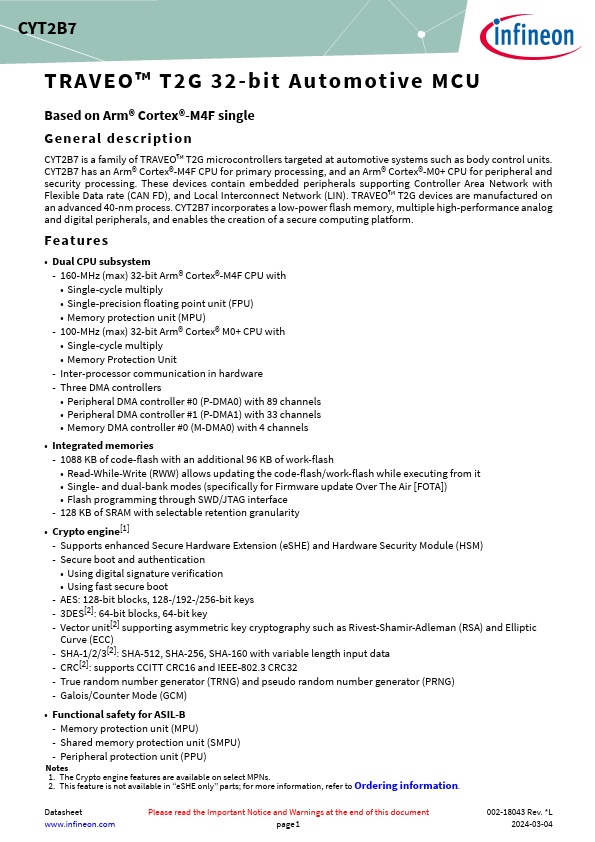

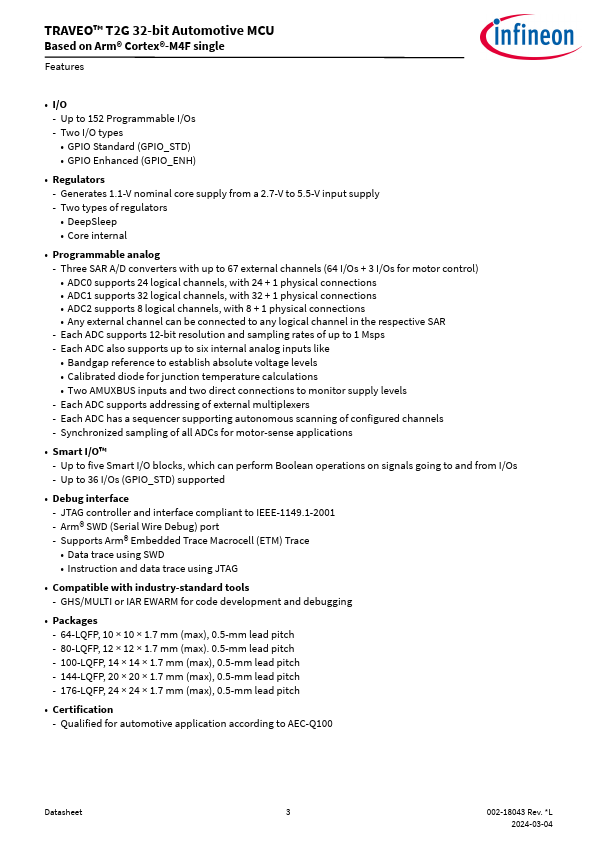

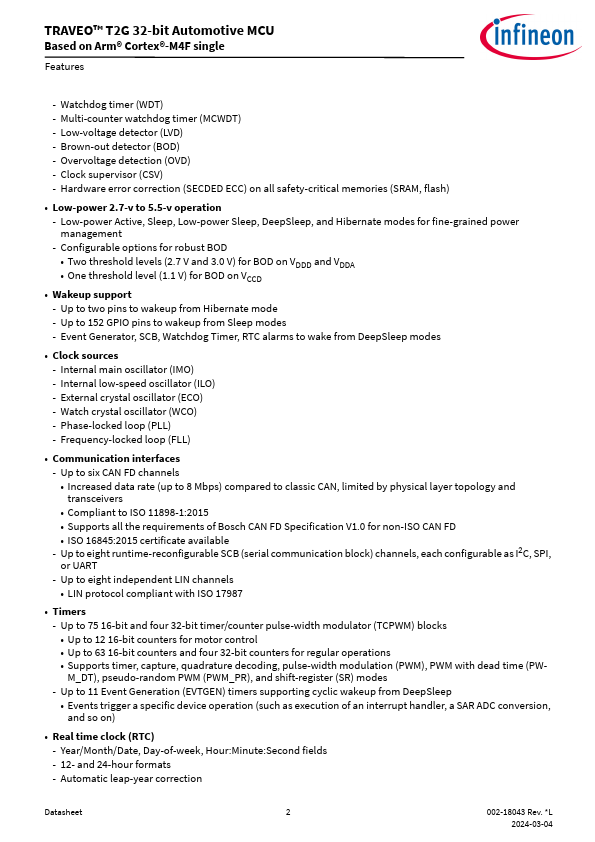

Additional preview pages of the CYT2B74BADQ0AZEGS datasheet.

CYT2B7 is a family of TRAVEO™ T2G microcontrollers targeted at automotive systems such as body control units.

Dual CPU subsystem - 160-MHz (max) 32-bit Arm® Cortex®-M4F CPU with.
Single-cycle multiply.
Single-precision floating point unit (FPU).
Memory protection unit (MPU) - 100-MHz (max) 32-bit Arm® Cortex® M0+ CPU with.
Single-cycle multiply.
Memory Protection Unit - Inter-processor communication in hardware - Three DMA controllers.
Peripheral DMA controller #0 (P-DMA0) with 89 channels.
Peripheral DMA controller #1 (P-DMA1) wi.
