CYT2506

White LED Step-Up Converter

CYT2506 Features

* ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ Inherently Matched LED Current. High Efficiency: 84% Typical. Drives Up to Four LEDs from a 3.2V Supply. Drives Up to Six LEDs from a 5V Supply. Fast 1.2MHz Switching Frequency. Uses Tiny 1mm Tall Inductors. Requires Only 0.22µF Output Capacitor. Low Profile SC70 and SOT Packaging.

CYT2506 General Description

The CYT2506 is a step-up DC/DC converter specifically designed to drive white LEDs with a constant current. The device can drive two, three or four LEDs in series from a Li-Ion cell. Series connection of the LEDs provides identical LED current resulting in uniform brightness and The CYT2506 Featur.

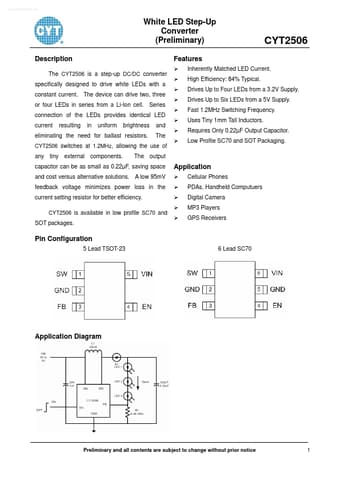

CYT2506 Datasheet (100.04 KB)

Preview of CYT2506 PDF

Datasheet Details

Part number:

CYT2506

Manufacturer:

CYT

File Size:

100.04 KB

Description:

White led step-up converter.
