CYT2596 - 3A 150KHz 40V Buck DC/DC Converter

Description

The CYT2596 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation.

Features

  • Wide 4.5V to 40V Input Voltage Range.
  • 3.3V,5V,12V, and adjustable versions.
  • Output Adjustable from 1.23V to 37V.
  • Maximum Duty Cycle 100%.
  • Minimum Drop Out 1.5V.
  • Fixed 150KHz Switching Frequency.
  • 3A Constant Output Current Capability.
  • Internal Optimize Power Transistor.
  • High efficiency.
  • Excellent line and load regulation.
  • TTL shutdown capability.
  • ON/OFF pin with hysteresis function.

📥 Download Datasheet

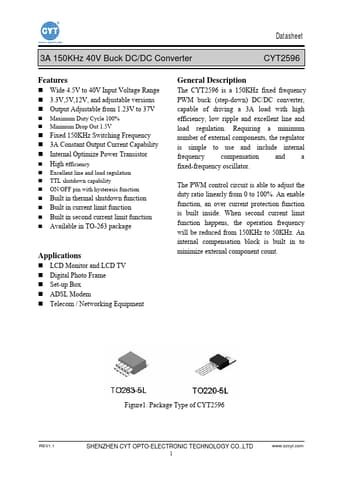

Datasheet preview – CYT2596
