PS8302L

6-PIN SDIP PHOTOCOUPLER

PS8302L Features

* High common mode transient immunity (CMH, CML = ±15 kV/µs MIN.)

* Half size of 8-pin DIP

* Long creepage distance (8 mm MIN. : PS8302L2)

* High supply voltage (VCC = 35 V)

* High isolation voltage (BV = 5 000 Vr.m.s.)

* High-speed response (tPH

PS8302L General Description

The PS8302L and PS8302L2 are optical coupled isolators containing a GaAlAs LED on the input side and a PIN photodiode and a high-speed amplifier transistor on the output side on one chip. The PS8302L and PS8302L2 are designed specifically for high supply voltage and high common mode transient immuni.

PS8302L Datasheet (597.17 KB)

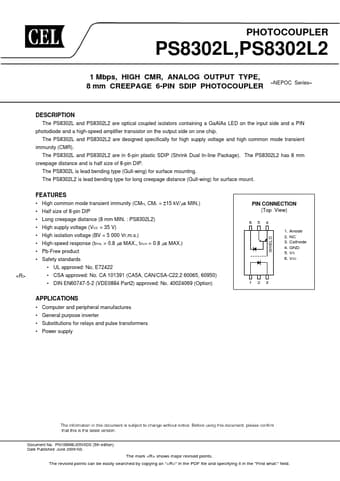

Preview of PS8302L PDF

Datasheet Details

Part number:

PS8302L

Manufacturer:

California Eastern Labs

File Size:

597.17 KB

Description:

6-pin sdip photocoupler.
