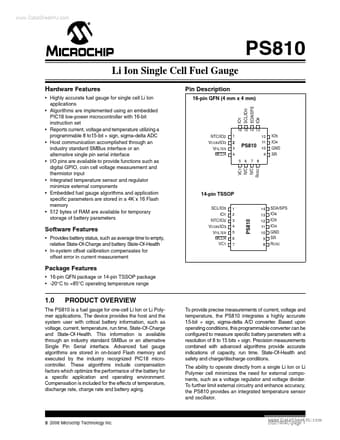

PS810 - Li Ion Single Cell Fuel Gauge

PS810 Description

www.DataSheet4U.com PS810 Li Ion Single Cell Fuel Gauge Hardware .
16-pin QFN (4 mm x 4 mm) SDA/SPS IO6 SCL/IO0 16 15 14 13 NTC/IO2 VCOIN/IO3 VFILTER MCLR 1 2 3 4 5 6 VC1 N/C 7 8 N/C ROSC 12 IO5 IO4 GND SR 11 10 9 1.

PS810 Applications

* Algorithms are implemented using an embedded PIC18 low-power microcontroller with 16-bit instruction set
* Reports current, voltage and temperature utilizing a programmable 8 to15-bit + sign, sigma-delta ADC
* Host communication accomplished through an industry standard SMB
