PS8352AL2 - OPTICAL COUPLED ISOLATION AMPLIFIER

PS8352AL2 Description

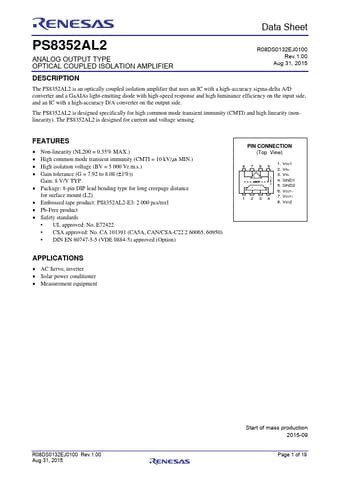

Preliminary Data Sheet PS8352AL2 ANALOG OUTPUT TYPE OPTICAL COUPLED ISOLATION AMPLIFIER R08DS0132EJ0100 Rev.1.00 Aug 31, 2015 .
The PS8352AL2 is an optically coupled isolation amplifier that uses an IC with a high-accuracy sigma-delta A/D converter and a GaAIAs light-emitting d.

PS8352AL2 Features

* Non-linearity (NL200 = 0.35% MAX. )
* High common mode transient immunity (CMTI = 10 kV/s MIN. )
* High isolation voltage (BV = 5 000 Vr. m. s. )
* Gain tolerance (G = 7.92 to 8.08 (1%)) Gain: 8 V/V TYP.
* Package: 8-pin DIP lead bending type for long creepage distance for surface

PS8352AL2 Applications

* AC Servo, inverter
* Solar power conditioner
* Measurement equipment PIN CONNECTION (Top View) + + 8765 1234
* SHIELD 1. VDD1 2. VIN+ 3. VIN
* 4. GND1 5. GND2 6. VOUT
* 7. VOUT+ 8. VDD2 R08DS0132EJ0100 Rev.1.00 Aug 31, 2015 Start of mass produc
