PS8101 - 5-PIN SOP (SO-5) PHOTOCOUPLER

PS8101 Description

DATA SHEET PHOTOCOUPLER PS8101 1 Mbps HIGH CMR ANALOG OUTPUT TYPE 5-PIN SOP (SO-5) PHOTOCOUPLER *NEPOC Series * .
The PS8101 is an optically coupled isolator containing a GaAlAs LED on the light emitting diode (input side) and a PIN photodiode and a high-speed amp.

PS8101 Features

* High common mode transient immunity (CMH, CML = ±15 kV/μs MIN. )
* Small package (SO-5)
* High supply voltage (VCC = 35 V)
* High isolation voltage (BV = 3 750 Vr. m. s. )
* High-speed response (tPHL = 0.8 μs MAX. , tPLH = 1.2 μs MAX. )
* Ordering numb

📥 Download Datasheet

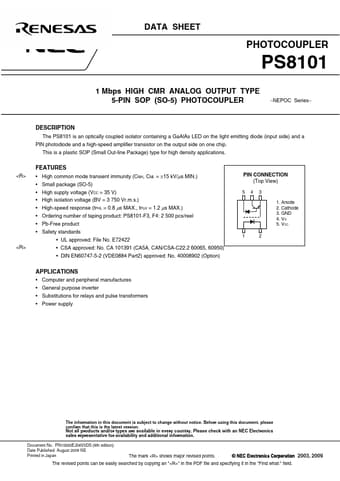

Preview of PS8101 PDF
