NE24283B, ULTRA LOW NOISE PSEUDOMORPHIC HJ FET

ULTRA LOW NOISE PSEUDOMORPHIC HJ FET NE24283B (SPACE QUALIFIED) .
The NE24283B is a pseudomorphic Hetero-Junction FET that uses the junction between Si-doped AlGaAs and undoped InGaAs to create very high mobility ele.

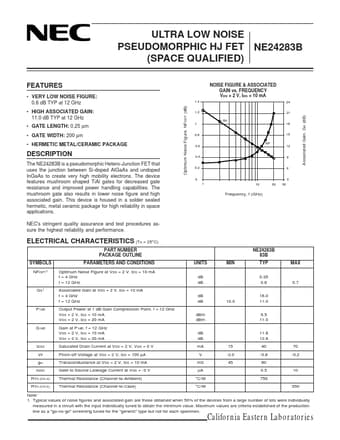

datasheet Preview Page 1 from Datasheet4u.com

NE24283B-CaliforniaEastern.pdf

NE24283B Datasheet Preview — Preview of NE24283B PDF

Datasheet Details

Part number:

NE24283B

Manufacturer:

California Eastern

File Size:

49.60 KB

Description:

ULTRA LOW NOISE PSEUDOMORPHIC HJ FET

Features

* VERY LOW NOISE FIGURE: 0.6 dB TYP at 12 GHz
* HIGH ASSOCIATED GAIN: 11.0 dB TYP at 12 GHz
* GATE LENGTH: 0.25 µm
* GATE WIDTH: 200 µm
* HERMETIC METAL/CERAMIC PACKAGE Optimum Noise Figure, NFOPT (dB) 1.4 1.2 GA 1 0.8 0.6 0.4 0.2 NF 18 15 NOISE FIGURE & ASSO

Applications

* NEC's stringent quality assurance and test procedures assure the highest reliability and performance. 0 1 10 20 30 Frequency, f (GHz) ELECTRICAL CHARACTERISTICS (TA = 25°C) PART NUMBER PACKAGE OUTLINE SYMBOLS NFOPT1 PARAMETERS AND CONDITIONS Optimum Noise Figure at VDS = 2 V, IDS = 10 mA f = 4 G
