CM1213 - Low Capacitance ESD Protection Arrays

California Micro Devices

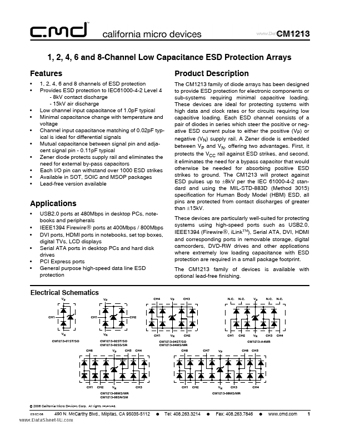

CM1213 Datasheet Preview — Preview of CM1213 PDF

Datasheet Details

Part number	CM1213
Manufacturer	California Micro Devices
File Size	479.09 KB
Description	Low Capacitance ESD Protection Arrays
Datasheet	CM1213_CaliforniaMicroDevices.pdf

CM1213 Product details

Description

The CM1213 family of diode arrays has been designed to provide ESD protection for electronic components or sub-systems requiring minimal capacitive loading.

Features

1, 2, 4, 6 and 8 channels of ESD protection Provides ESD protection to IEC61000-4-2 Level 4 - 8kV contact discharge - 15kV air discharge Low channel input capacitance of 1.0pF typical Minimal capacitance change with temperature and voltage Channel input capacitance matching of 0.02pF typical is ideal for differential signals Mutual capacitance between signal pin and adjacent signal pin - 0.11pF ty.
