CM1215 - Low Capacitance ESD Arrays

California Micro Devices

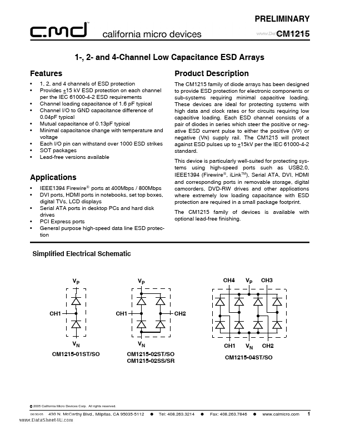

CM1215 Datasheet Preview — Preview of CM1215 PDF

Datasheet Details

Part number	CM1215
Manufacturer	California Micro Devices
File Size	365.52 KB
Description	Low Capacitance ESD Arrays
Datasheet	CM1215_CaliforniaMicroDevices.pdf

CM1215 Product details

Description

The CM1215 family of diode arrays has been designed to provide ESD protection for electronic components or sub-systems requiring minimal capacitive loading.

Features

1, 2, and 4 channels of ESD protection Provides +15 kV ESD protection on each channel per the IEC 61000-4-2 ESD requirements Channel loading capacitance of 1.6 pF typical Channel I/O to GND capacitance difference of 0.04pF typical Mutual capacitance of 0.13pF typical Minimal capacitance change with temperature and voltage Each I/O pin can withstand over 1000 ESD strikes SOT packages Lead-free versions avail.
